Revit Section Detail Components Package
This package contains 50+ parametric detail components for detailing building sections, wall sections, detail views, etc.
Think of all the time you’ll save from having to create these hatch patterns yourself!
Think of all the time you’ll save from having to create these hatch patterns yourself!
You can also use these detail components to create repeating details for siding, floor, or roof structure, roof shingles, welded wire mesh, stacked brick or stone, and many other purposes!
List of components includes:
- Break Line - Double
- Break Line - Single
- Azek Trim - Section
- Bird Block Vent
- Standard Brick - top, bottom, side
- Caulk Bead
- Clapboard - left, right
- Double Top/Bottom Plate - Section
- Fastener - Threaded Rod
- Fastener - Anchor Bolt - angled
- Fastener - Anchor Bolt - straight
- Foundation Drainage Detail w/ French Drain
- Gutter - Cove
- Gutter - Ogee
- Gypsum Sheathing - Section
- Hardboard - Section
- Joist Hanger - Elevation
- LVL - Section
- Metal Drip Edge
- Particleboard - Section
- Tub - Section
- Plywood Web Joist - Section
- Plywood Web Joist - Elevation
- Plywood - Section
- Rigid Insulation - Section
- 2x Roof Truss - Section
- Shake - Section - left, right
- Skirt - Section
- Sloped Rafter
- Sloped Rafter Beyond
- Stone - Round
- Structural L Bracket
- Foundation Key Cut
- 2x Floor Truss - Section
- Roof Rafter - Elevation
- Wood Column - Plan
- Wood Cutline
- Wood Stick Frame Roof - Section
- Wide Flange - Section
- Welded Wire Mesh - Section
- 1x Beadboard
- 1x Tongue & Groove
- 1x Tongue & Groove with V Groove
- 2x Tongue & Groove
- 2x Tongue & Groove with V Groove
- 5/4x Tongue & Groove
- 5/4x Tongue & Groove with V Groove
- Dimensional Lumber - Section
- Dimensional Lumber - Elevation
- Wood Strip Flooring - Section
- Roof Shingle - Section
Included in the package:
- 50+ custom Revit 2D families

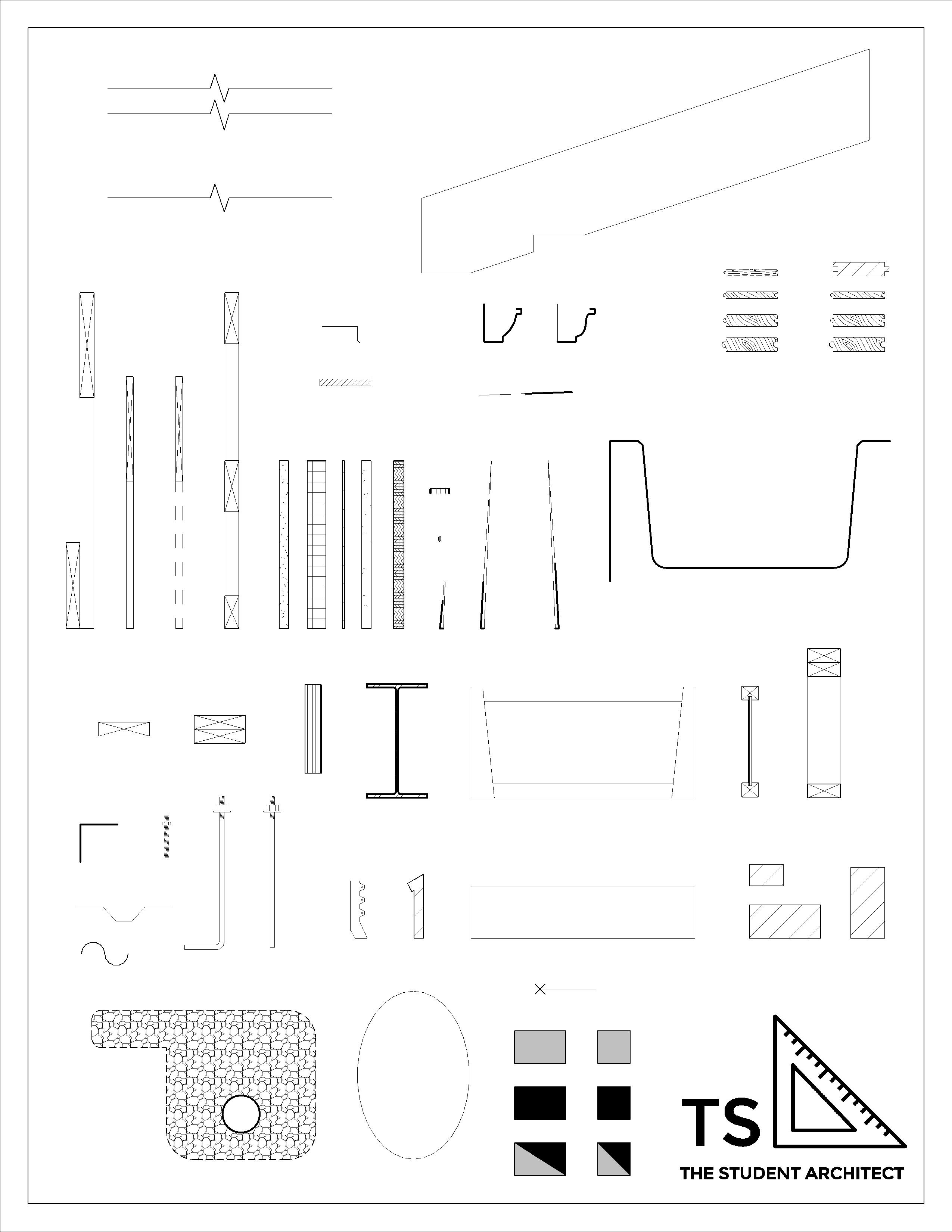

- PDF showing each component
- Bonus resources
You will need Revit 2021 or later to use these components.
Get the
Revit Section Detail Components Package
for $15
